- 產品詳情
LM5017 是一款 100V、600mA 同步降壓穩壓器，集成了高側和低側 MOSFET。LM5017 所采用的恒定導通時間 (COT) 控制方案無需環路補償，可提供出色的瞬態響應，并且可實現超高降壓比。導通時間與輸入電壓成反比，因此在整個輸入電壓范圍內，頻率幾乎保持恒定。高壓啟動穩壓器為 IC 的內部運行以及集成柵極驅動器提供了偏置電源。
| Orderable Device | Status | Package Drawing | Drawing | Pins | Package Qty | Eco Plan | Lead finish/ Ball material | MSL Peak Temp | Op Temp (°C) | Device Marking |
| LM5017MR/NOPB | ACTIVE | SO PowerPAD | DDA | 8 | 95 | RoHS &Green | NIPDAU |SN | Level-3-260C-168 HR | -40 to 126 | L5017 |
| LM5017MRE/NOPB | ACTIVE | SO PowerPAD | DDA | 8 | 250 | RoHS &Green | NIPDAU|SN | Level-3-260C-168 HR | 40 to 125 | L5017 |
| LM5017MRX/NOPB | ACTIVE | SO PowerPAD | DDA | 8 | 2500 | RoHS &Green | NIPDAU |SN | evel-3-260C-168 HR | -40 to 125 | L5017 |

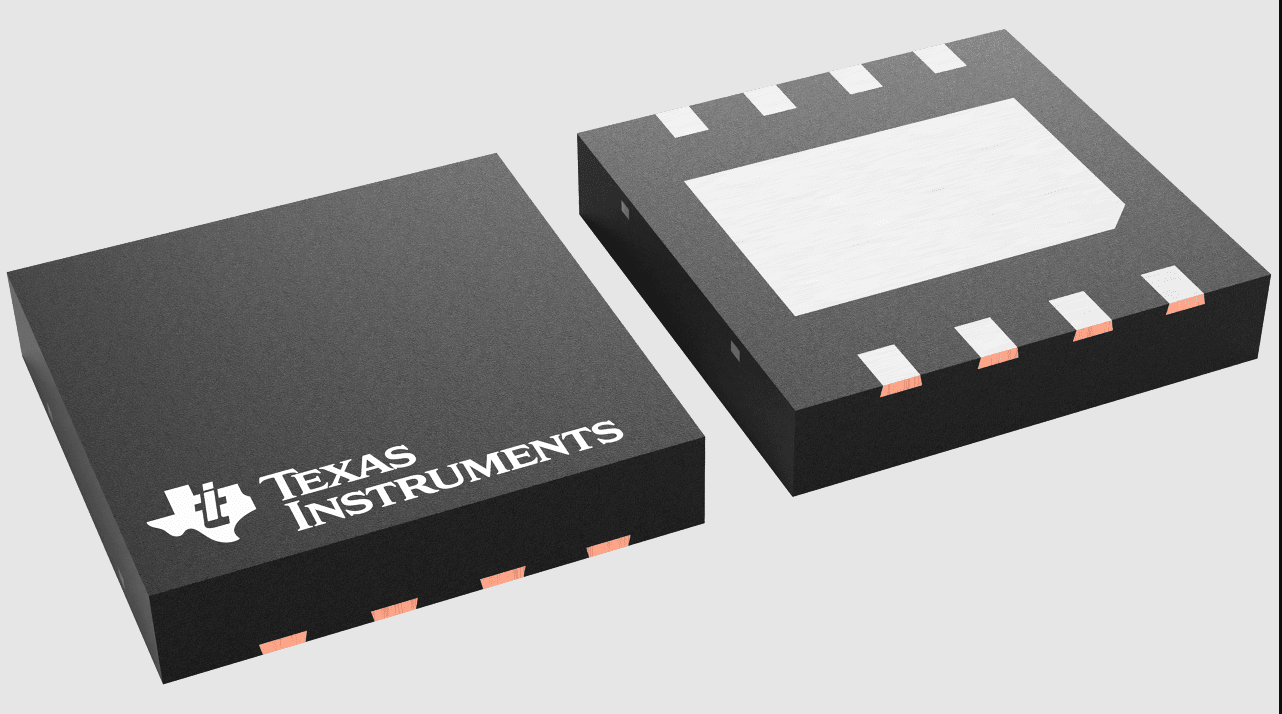

| LM5017SD/NOPB | ACTIVE | WSON | NGU | 8 | 1000 | RoHS 8 Green | SN | Level-1-260C-UNLIM | -40 to 125 | L5017 |
| LM5017SDE/NOPB | ACTIVE | WSON | NGU | 8 | 250 | RoHS 8 Greer | SN | Level-1-260C-UNLIM | -40 to 125 | L5017 |
| LM5017SDX/NOPB | ACTIVE | WSON | NGU | 8 | 4500 | RoHS &Green | SN | Level-1-260C-UNLIM | -40 to 126 | L5017 |
