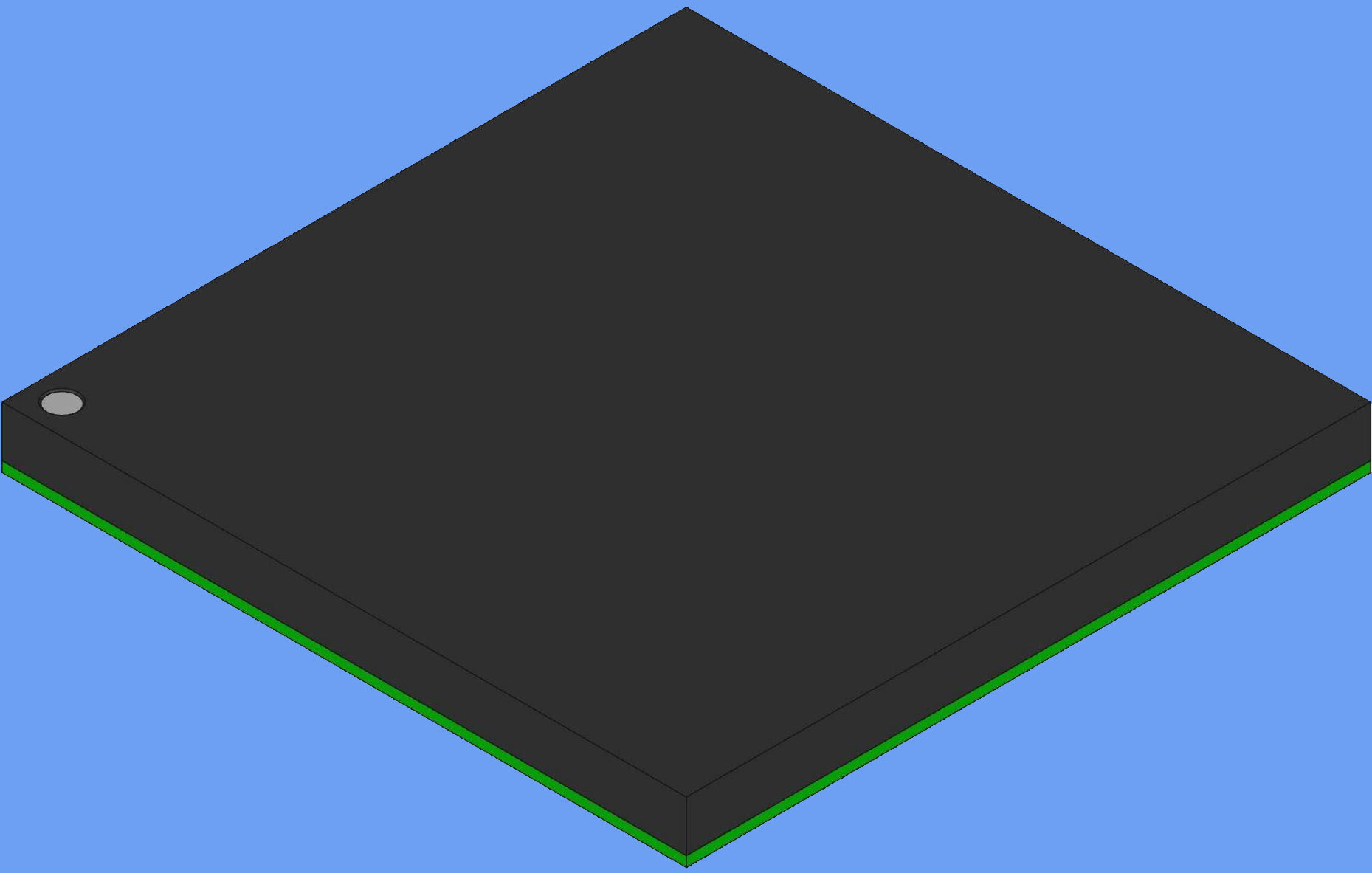

FPGA現場可編程門陣列LFE3-35EA-6FN484C 超高效性能

發布于：2023-11-15 17:33:45

品牌名稱：Lattice

重要參數：

型號：LatticeECP3系列

邏輯元件：33000

電源電壓：1.2V

封裝：FBAG

引腳數：484

  • 產品詳情

超高效性能 – 在盡可能小的空間內實現最后一項功能至關重要。這就是為什么您需要LatticeECP3的150 k LUT的原因

最大限度地提高可靠性、降低成本和功耗——LatticeECP3 FPGA采用片上SERDES技術，功耗低于0.5 W，可提高工業、電信或汽車基礎設施設備的可靠性并降低成本

連接良好的 FPGA – 具有正確協議的 SERDES。具有正確接口的 IO。使用LatticeECP3滿足您所有的系統連接和擴展需求

特征：

多達 16 個通道，速率為 3.125 Gbps

800 MBps DDR3,1Gbps LVDS

多達 586 個可編程 sysIO 緩沖器，支持 PCI Express、以太網(GbE、XAUI 和 SGMII)、HDMI、SMPTE、串行快速 I/O、CPRI 和 JESD204A/B 等

高達 150 k LUT 和 6.8 Mbits SRAM

各種封裝，小至 10.0 mm x 10.0 mm，功耗低于 0.5 W


LatticeECP3器件選型指南：


LFE3-150EA-6FN1156CLFE3-150EA-6LFN1156C
LFE3-150EA-7FN1156CLFE3-150EA-7LFN1156C
LFE3-150EA-8FN1156C
LFE3-150EA-8LFN1156CLFE3-150EA-9FN1156ILFE3-150EA-AMC-EVNLFE3-150EA-IO-EVNLFE3-17EA-6FT256C
LFE3-17EA-6LFN484CLFE3-17EA-6LFTN256CLFE3-17EA-6LMG328CLFE3-17EA-6MG328CLFE3-17EA-7FN484C
LFE3-17EA-7FTN256CLFE3-17EA-7LFN484CLFE3-17EA-7MG328CLFE3-17EA-7MG328ILFE3-17EA-8FN484C
LFE3-17EA-8FTN256CLFE3-17EA-8LFN484CLFE3-17EA-8LMG328CLFE3-17EA-8MG328CLFE3-17EA-USB3-EVN
LFE3-35EA-6FN484CLFE3-35EA-6FTN256CCU1LFE3-35EA-6LFN484CLFE3-35EA-7F484I9ULFE3-35EA-7FN672I
LFE3-35EA-7FTN256CLFE3-35EA-7LFN484CLFE3-35EA-7LFTN256CLFE3-35EA-8FN484CLFE3-35EA-8FN672C
LFE3-35EA-8LFTN256CLFE3-35EA-9FN484CLFE3-35EA-9FN672ILFE3-35EA-9FTN256ILFE3-35EA-HMI-DKN
LFE3-35EA-VERSA-EVNLFE3-70E-6FN1156CLFE3-70E-7FN1156ILFE3-70E-8FN1156CLFE3-70EA-6FN1156C
LFE3-70EA-6FN1156IADWLFE3-70EA-6FN484CAEQLFE3-70EA-6FN672CLFE3-70EA-6LFN1156ILFE3-70EA-6LFN672I
LFE3-70EA-7FN1156CLFE3-70EA-7FN484CAEJLFE3-70EA-7FN672CLFE3-70EA-7LFN1156CLFE3-70EA-7LFN484C
LFE3-70EA-7LFN672ILFE3-70EA-8F484CLFE3-70EA-8FN1156CLFE3-70EA-8LFN1156CLFE3-70EA-9FN1156C
LFE3-70EA-HDR60-DKNLFE3-95E-6FN484CLFE3-95E-7FN1156CLFE3-95E-8FN1156ILFE3-95E-PCIE-DKN系列
LFE3-95EA-6FN1156CLFE3-95EA-7F1156ILFE3-95EA-7FN1156CLFE3-95EA-7LFN1156CLFE3-95EA-8F484IANV
LFE3-95EA-8FN1156CLFE3-95EA-8LF484C系列LFE3-95EA-8LFN1156ILFE3-95EA-9FN1156CLFE3-95EA-PCIE-DKN
LFE3-95EA-SP-EVN型LFE3-95EA-V-EVN型LFE3-MEZZ-EVN接口



參數ECP3-17ECP3-35ECP3-70ECP3-95ECP3-150
LUT （K）17336792149
EBR SRAM模塊3872240240372
EBR SRAM（千比特）7001327442044206850
分布式 RAM （Kbits）3668145188303
18 x 18 乘法器2464128128320
3.2 Gbps SERDES通道44121216
PLL + DLL2+24+220H220H220H2
DDR 支持DDR3 800、DDR2 533、DDR 400
啟動閃存外部外部外部外部外部
雙啟動是的是的是的是的是的
比特流加密是的是的是的是的是的
核心 Vcc1.2 V1.2  V1.2  V1.2 V1.2 V
溫度 C是的是的是的是的是的
溫度 I是的是的是的是的是的
溫度 AEC-Q100是的是的---


汽車級(符合AEC-Q100標準) LatticeECP3器件選型指南:

參數LA-ECP3-17LA-ECP3-35
LUT （K）1733
EBR SRAM（千比特）7001327
EBR SRAM模塊3872
分布式 RAM （Kbits）3668
18 x 18 乘法器2464
3.2 Gbps SERDES通道44
最大可用 I/O222310
PLL + DLL2+24+2


Part NumberVoltageGradePowerPackage*PinsTempLUTs (K)
LFE3-17EA-6FTN2561.2 V-6STDLead-Free ftBGA256IND17
LFE3-17EA-7FTN2561.2 V-7STDLead-Free ftBGA256IND17
LFE3-17EA-8FTN2561.2 V-8STDLead-Free ftBGA256IND17
LFE3-17EA-6LFTN2561.2 V-6LOWLead-Free ftBGA256IND17
LFE3-17EA-7LFTN2561.2 V-7LOWLead-Free ftBGA256IND17
LFE3-17EA-8LFTN2561.2 V-8LOWLead-Free ftBGA256IND17
LFE3-17EA-6MG32811.2 V-6STDLead-Free csBGA328IND17
LFE3-17EA-7MG32811.2 V-7STDLead-Free csBGA328IND17
LFE3-17EA-8MG32811.2 V-8STDLead-Free csBGA328IND17
LFE3-17EA-6LMG328I1.2 V-6LOWGreen csBGA328IND17
LFE3-17EA-7LMG328I1.2 V-7LOWGreen csBGA328IND17
LFE3-17EA-8LMG328I1.2 V-8LOWGreen csBGA328IND17
LFE3-17EA-6FN484I1.2 V-6STDLead-Free fpBGA484IND17
LFE3-17EA-7FN484I1.2 V-7STDLead-Free fpBGA484IND17
LFE3-17EA-8FN484I1.2 V-8STDLead-Free fpBGA484IND17
LFE3-17EA-6LFN484I1.2 V-6LOWLead-Free fpBGA484IND17
LFE3-17EA-7LFN484I1.2 V-7LOWLead-Free fpBGA484IND17
LFE3-17EA-8LFN484I1.2 V-8LOWLead-Free fpBGA484IND17
*Note:Green =Halogen free and lead free
Part NumberVoltageGrade1PowerPackagePinsTempLUTs (K)
LFE3-35EA-6FTN2561.2V-6STDLead-Free ftBGA256IND33
LFE3-35EA-7FTN2561.2V-7STDLead-Free ftBGA256ND33
LFE3-35EA-8FTN2561.2V-8STDLead-Free ftBGA256IND33
LFE3-35EA-6LFTN2561.2V-6LOWLead-Free ftBGA256IND33
LFE3-35EA-7LFTN2561.2V-7LOWLead-Free ftBGA256IND33
LFE3-35EA-8LFTN2561.2V-8LOWLead-Free ftBGA256IND33
LFE3-35EA-6FN484I1.2V-6STDLead-Free fpBGA484ND33
LFE3-35EA-7FN484I1.2V-7STDLead-Free fpBGA484IND33
LFE3-35EA-8FN484I1.2V-8STDLead-Free fpBGA484IND33
LFE3-35EA-6LFN484I1.2V-6LOWLead-Free fpBGA484IND33
LFE3-35EA-7LFN484I1.2V-7LOWLead-Free fpBGA484IND33
LFE3-35EA-8LFN484I1.2V-8LOWLead-Free fpBGA484IND33
LFE3-35EA-6FN672I1.2V-6STDLead-Free fpBGA672IND33
LFE3-35EA-7FN672I1.2V-7STDLead-Free fpBGA672IND33
LFE3-35EA-8FN672I1.2V-8STDLead-Free fpBGA672IND33
LFE3-35EA-6LFN672I1.2V-6LOWLead-Free fpBGA672IND33
LFE3-35EA-7LFN672I1.2V-7LOWLead-Free fpBGA672IND33
LFE3-35EA-8LFN672I12V-810WLead-Free fpBGA672IND33
Part NumberWoltageGradePowerPackagePinsTempLUTs (K
LFE3-70EA-6FN484I1.2 V-6STDLead-Free fpBGA484IND67
LFE3-70EA-7FN484I1.2 V-7STDLead-Free foBGA484IND67
LFE3-70EA-8FN484I1.2 V-8STDLead-Free fpBGA484IND67
LFE3-70EA-6LFN484I1.2 V-6LOWLead-Free fpBGA484IND67
LFE3-70EA-7LFN484I1.2 V-7LOWLead-Free fpBGA484IND67
LFE3-70EA-8LFN484I1.2 V-8LOWLead-Free fpBGp484IND67
LFE3-70EA-6FN672I1.2 V-6STDLead-Free fpBGA672IND67
LFE3-70EA-7FN672I1.2 V-7STDLead-Free fpBGA672IND67
LFE3-70EA-8FN672I1.2 V-8STDLead-Free fpBGA672IND67
LFE3-70EA-6LFN6721.2 V-6LOWLead-Free fpBGA672IND67
LFE3-70EA-7LFN672I1.2 V-7LOWLead-Free fpBGA672IND67
LFE3-70EA-8LFN672I1.2 V-8LOWLead-Free fpBGA672IND67
LFE3-70EA-6FN11561.2 V-6STDLead-Free fpBGA1156IND67
LFE3-70EA-7FN11561.2 V-7STDLead-Free fpBGA1156IND67
LFE3-70EA-8FN11561.2 V-8STDLead-Free fpBGA1156IND67
LFE3-70EA-6LFN11561.2 V-6LOWLead-Free fpBGA1156IND67
LFE3-70EA-7LFN11561.2 V-7LOWLead-Free fpBGA1156IND67
LFE3-70EA-8LFN11561.2 V-8LOWLead-Free fpBGA1156IND67
Note:For ordering information on-9 speed grade devices,contact your Lattice Sales Representative
Part NumberVoltageGrade*PowerPackagePinsTempLUTs (K
LFE3-95EA-6FN484I1.2V-6STDLead-Free fpBGA484IND92
LFE3-95EA-7FN484I1.2V-7STDLead-Free fpBGA484ND92
LFE3-95EA-8FN484I1.2V-8STDLead-Free fpBGA484ND92
LFE3-95EA-6LFN484I1.2V-6LOWLead-Free fpBGA484ND92
LFE3-95EA-7LFN484I1.2V-7LOWLead-Free fpBGA484ND92
LFE3-95EA-8LFN484I1.2V-8LOWLead-Free fpBGA484ND92
LFE3-95EA-6FN672I1.2V-6STDLead-Free fpBGA672ND92
LFE3-95EA-7FN672I1.2V-7STDLead-Free fpBGA672ND92
LFE3-95EA-8FN672I1.2V-8STDLead-Free fpBGA672ND92
LFE3-95EA-6LFN6721.2V-6LOWLead-Free fpBGA672ND92
LFE3-95EA-7LFN672I1.2V-7LOWLead-Free fpBGA672ND92
LFE3-95EA-8LFN672I1.2V-8LOWLead-Free fpBGA672ND92
LFE3-95EA-6FN11561.2V-6STDLead-Free fpBGA1156IND92
LFE3-95EA-7FN11561.2V-7STDLead-Free fpBGA1156ND92
LFE3-95EA-8FN11561.2V-8STDLead-Free fpBGA1156ND92
LFE3-95EA-6LFN11561.2V-6LOWLead-Free fpBGA1156ND92
LFE3-95EA-7LFN1156I1.2V-7LOWLead-Free fpBGA1156ND92
LFE3-95EA-8LFN11561.2V-8LOWLead-Free fpBGA1156ND92
Part NumberVoltageGrade*PowerPackagePinsTemp.LUTs (K
LFE3-150EA-6FN6721.2V-6STDLead-Free fpBGA672IND149
LFE3-150EA-7FN6721.2 V-7STDLead-Free fpBGA672IND149
LFE3-150EA-8FN6721.2 V-8STDead-Free fpBGA672IND149
LFE3-150EA-6LFN6721.2V-6LOWLead-Free fpBGA672IND149
LFE3-150EA-7LFN6721.2V-7LOWLead-Free fpBGA672IND149
LFE3-150EA-8LFN6721.2 V-8LOWLead-Free fpBGA672IND149
LFE3-150EA-6FN11561.2V-6STDLead-Free fpBGA1156IND149
LFE3-150EA-7FN11561.2V-7STDLead-Free fpBGA1156IND149
LFE3-150EA-8FN11561.2V-8STDLead-Free fpBGA1156IND149
LFE3-150EA-6LFN11561.2V-6LOWLead-Free fpBGA1156IND149
LFE3-150EA-7LFN11561.2V-7LOWLead-Free fpBGA1156IND149
LFE3-150EA-8LFN11561.2V-8LOWLead-Free fpBGA1156IND149
*Note:For ordering information on-9 speed grade devices,contact your Lattice Sales Representative.
Part NumberVoltageGradePowerPackagePinsTempLUTs (K
LFE3-150EA-6FN672ITW*1.2V-6STDLead-Free fpBGA672IND149
LFE3-150EA-7FN672ITW*1.2V-7STDLead-Free fpBGA672IND149
LFE3-150EA-8FN672ITW*1.2V-8STDLead-Free fpBGA672IND149
LFE3-150EA-6FN1156ITW1.2V-6STDLead-Free fpBGA1156IND149
LFE3-150EA-7FN1156ITW*1.2V-7STDLead-Free fpBGA1156IND149
LFE3-150EA-8FN1156ITW1.2V-8STDLead-Free fpBGA1156IND149
