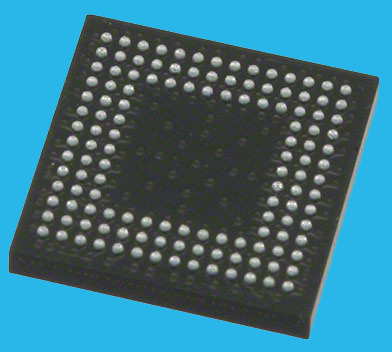

CPLD復雜可編程邏輯器件LCMXO2280C-3MN132C

發布于：2023-11-07 17:24:02

品牌名稱：Lattice

重要參數：

型號：MachXO系列

I/O: 101pins

電源電壓：1.8|2.5|3.3V

封裝：CSBGA-132pin


  • 產品詳情

MachXO系列：

MachXO經過優化，可滿足傳統上由cpld和低容量fpga解決的應用需求:粘合邏輯、總線橋接、總線接口、上電控制和控制邏輯。這些器件在單個芯片上匯集了CPLD和FPGA器件的最佳特性。

MachXO系列選型指南

DeviceLCMXO256LCMXO640LCMXO1200LCMXO2280
LUTs25664012002280
Dist.RAM (Kbits2.06.16.47.7
EBR SRAM (Kbits009.227.6
Number of EBR SRAM Blocks (9 Kbits0013
Voc Voltage1.2/1.8/2.5/3.3V1.2/1.8/2.5/3.3 V1.2/1.8/2.5/3.3V1.2/1.8/2.5/3.3V
Number of PLLs0012
Max.I/078159211271
Packages
100-pin TQFP (14x14 mm78747373
144-pin TQFP (20x20 mm)
113113113
100-ball csBGA (8x8 mm)7874

132-ball csBGA (8x8 mm
101101101
256-ball caBGA (14x14 mm
159211211
256-ball ftBGA (17x17 mm)
159211211
324-ball ftBGA (19x19 mm)


271


訂購信息：

Part NumberLUTsSupply Voltagel/OsGradePackagePinsTemp
LCMXO256C-3T10012561.8V/2.5V/3.3V78-3TOFP100IND
LCMXO256C-4T10012561.8V/2.5V/3.3 V78-4TQFP100IND
LCMXO256C-3M1002561.8V/2.5V/3.3V78-3CSBGA100IND
LCMXO256C-4M1002561.8V/2.5V/3.3V78-4CsBGA100IND
LCMXO640C-3T10016401.8V/2.5V/3.3V74-3TQFP100IND
LCMXO640C-4T10016401.8V/2.5V/3.3V74-4TQFP100IND
LCMXO640C-3M1006401.8V/2.5V/3.3V74-3CSBGA100IND
LCMXO640C-4M1006401.8V/2.5V/3.3V74-4CsBGA100IND
LCMXO640C-3T14416401.8V/2.5V/3.3 V113-3TQFP144IND
LCMXO640C-4T14416401.8V/2.5V/3.3 V113-4TQFP144IND
LCMXO640C-3M1326401.8V/2.5V/3.3V101-3CSBGA132IND
LCMXO640C-4M1326401.8V/2.5V/3.3V101-4CsBGA132IND
LCMXO640C-38256I6401.8V/2.5V/3.3V159-3caBGA256IND
LCMXO640C-48256I6401.8V/2.5V/3.3V159-4caBGA256IND
LCMX0640C-3FT2566401.8V/2.5V/3.3V159-3ftBGA256ND
LCMXO640C-4FT2566401.8V/2.5V/3.3V159-4ftBGA256IND
LCMXO1200C-3T100112001.8V/2.5V/3.3V73-3TOFP100IND
LCMXO1200C-4T100112001.8V/2.5V/3.3 V73-4TQFP100IND
LCMXO1200C-3T144I12001.8V/2.5V/3.3V113-3TQFP144IND
LCMXO1200C-4T144112001.8V/2.5V/3.3 V113-4TQFP144IND
LCMXO1200C-3M13212001.8V/2.5V/3.3V101-3CSBGA132IND
LCMXO1200C-4M13212001.8V/2.5V/3.3 V101-4CSBGA132IND
LCMXO1200C-3B256I12001.8V/2.5V/3.3V211-3caBGA256IND
Part Number LUTsSupply Voltagel/OsGradePackage PinsTemp
LCMXO1200C-4B256I 12001.8V/2.5V/3.3V211-4caBGA 256IND
LCMXO1200C-3FT256 12001.8V/2.5V/3.3V2113ftBGA 256IND
LCMXO1200C-4FT256I 12001.8V/2.5V/3.3V211-4ftBGA 256IND
LCMXO2280C-3T100 22801.8V/2.5V/3.3V733TQFP 100IND
LCMXO2280C-4T100 22801.8V/2.5V/3.3V73-4TQFP 100IND
LCMXO2280C-3T1441 22801.8V/2.5V/3.3V113-3TQFP 144IND
LCMXO2280C-4T1441 22801.8V/2.5V/3.3V113-4TQFP 144IND
LCMXO2280C-3M1321 22801.8V/2.5V/3.3V101-3CsBGA 132IND
LCMXO2280C-4M1321 22801.8V/2.5V/3.3V101-4csBGA 132IND
LCMXO2280C-38256I 22801.8V/2.5V/3.3V2113caBGA 256IND
LCMXO2280C-48256I 22801.8V/2.5V/3.3V211-4caBGA 256IND
LCMXO2280C-3FT256I 22801.8V/2.5V/3.3V2113ftBGA 256IND
LCMXO2280C-4FT2561 22801.8V/2.5v/3.3V2114ftBGA 256IND
LCMXO2280C-3FT324I 22801.8V/2.5V/3.3V2713ftBGA 324IND
LCMXO2280C-4FT324I 22801.8V/2.5V/3.3V271-4ftBGA 324IND
LCMXO256E-3T100I 2561.2V783TOFP 100IND
LCMXO256E-4T100I 2561.2 V78-4TQFP 100IND
LCMXO256E-3M100I 2561.2V783csBGA 100IND
LCMXO256E-4M100I 2561.2 V784csBGA 100IND
LCMXO640E-3T100I 6401.2 V743TOFP 100IND
LCMXO640E-4T100 6401.2V74-4TQFP 100IND
LCMXO640E-3M100I 6401.2 V743csBGA 100IND
LCMXO640E-4M100I 6401.2V74-4csBGA 100IND
LCMXO640E-3T144I 6401.2 V1133TQFP 144IND
LCMXO640E-4T144I 6401.2 V1134TQFP 144IND
LCMXO640E-3M1321 6401.2V101-3csBGA 132IND
LCMXO640E-4M1321 6401.2V101-4csBGA 132IND
LCMXO640E-3B256I 6401.2 V1593caBGA 256IND
LCMXO640E-4B256I 6401.2V159-4caBGA 256IND
LCMXO640E-3FT256I 6401.2V1593ftBGA 256IND
LCMXO640E-4FT256I 6401.2 V1594ftBGA 256IND
LCMXO1200E-3T100I 12001.2V73-3TQFP 100IND
LCMXO1200E-4T100I 12001.2V73-4TOFP 100IND
LCMXO1200E-3T144I 12001.2 V113-3TQFP 144IND
LCMXO1200E-4T144I 12001.2V113-4TQFP 144IND
LCMXO1200E-3M13.21 12001.2 V1013csBGA 132IND
LCMXO1200E-4M13.21 12001.2 V101-4csBGA 132IND
LCMXO1200E-3B256I 12001.2V2113caBGA 256IND
LCMXO1200E-4B256I 12001.2 V211-4caBGA 256IND
LCMXO1200E-3FT256I 12001.2V211-3ftBGA 256IND
LCMXO1200E-4FT256 12001.2 V211-4ftBGA 256IND
LCMXO2280E-3T100I 22801.2 V73-3TQFP 100IND
LCMXO2280E-4T100I 22801.2V73-4TQFP 100IND
LCMXO2280E-3T1441 22801.2 V1133TQFP 144IND
LCMXO2280E-4T1441 22801.2 V113-4TQFP 144IND
LCMXO2280E-3M13.21 22801.2 V1013csBGA 132IND
LCMXO2280E-4M13.21 22801.2V101-4csBGA 132IND
LCMXO2280E-3B256I 22801.2 V2113caBGA 256IND


Part Number LUTsSupply Voltagel/OsGradePackagePinsTemp
LCMXO2280E-4B2561 22801.2V2114caBGA256IND
LCMXO2280E-3FT256 22801.2V2113ftBGA256IND
LCMXO2280E-4FT256 22801.2V2114ftBGA256IND
LCMXO2280E-3FT324 22801.2V2713ftBGA324IND
LCMXO2280E-4FT324 22801.2V2714ftBGA324IND


Part NumberLUTsSupply Voltagel/OsGradePackagePinTemp.
LCMXO256C-3TN100I2561.8V/2.5V/3.3V78-3Lead-Free TQFP100IND
LCMXO256C-4TN100I2561.8V/2.5V/3.3V78-4Lead-Free TQFP100IND
LCMXO256C-3MN100I2561.8V/2.5V/3.3V783ead-Free csBGA100IND
LCMXO256C-4MN100I2561.8V/2.5V/3.3V78-4ead-Free csBGA100IND
LCMXO640C-3TN100I6401.8V/2.5V/3.3 V74-3Lead-Free TOFP100IND
LCMXO640C-4TN100I6401.8V/2.5V/3.3V74-4Lead-Free TQFP100IND
LCMXO640C-3MN100I6401.8V/2.5V/3.3 V74-3Lead-Free csBGA100IND
LCMXO640C-4MN100I6401.8V/2.5V/3.3 V74-4Lead-Free csBGA100IND
LCMXO640C-3TN144I6401.8V/2.5V/3.3 V113-3Lead-Free TOFP144IND
LCMXO640C-4TN1446401.8V/2.5V/3.3V113-4Lead-Free TQFP144IND
LCMXO640C-3MN13216401.8V/2.5V/3.3V101-3Lead-Free csBGA132IND
LCMXO640C-4MN13216401.8V/2.5V/3.3V101-4Lead-Free csBGA132IND
LCMXO640C-3BN256I6401.8V/2.5V/3.3V159-3Lead-Free caBGA256IND
LCMXO640C-4BN256I6401.8V/2.5V/3.3V159-4Lead-Free caBGA256IND
LCMXO640C-3FTN256I6401.8V/2.5V/3.3V159-3Lead-Free ftBGA256ND
LCMXO640C-4FTN256I6401.8V/2.5V/3.3V1594Lead-Free ftBGA256IND
LCMXO1200C-3TN10012001.8V/2.5V/3.3 V733Lead-Free TQFP100IND
LCMXO1200C-4TN100I1201.8V/2.5V/3.3V73-4Lead-Free TQFP100ND
LCMXO1200C-3TN144I12001.8V/2.5V/3.3 V113-3Lead-Free TQFP144IND
LCMXO1200C-4TN144I12001.8V/2.5V/3.3 V113-4Lead-Free TQFP144IND
LCMXO1200C-3MN13211201.8V/2.5V/3.3V101-3Lead-Free csBGA132IND
LCMXO1200C-4MN13211201.8V/2.5V/3.3 V101-4Lead-Free csBGA132IND
LCMXO1200C-3BN256I12001.8V/2.5V/3.3V2113Lead-Free caBGA256IND
LCMXO1200C-4BN256I12001.8V/2.5V/3.3 V211-4Lead-Free caBGA256IND
LCMXO1200C-3FTN256I12001.8V/2.5V/3.3V2113Lead-Free ftBGA256IND
LCMXO1200C-4FTN256I12001.8V/2.5V/3.3V211-4Lead-Free ftBGA256IND
LCMXO2280C-3TN100I22801.8V/2.5V/3.3 V733Lead-Free TOFP100IND
LCMXO2280C-4TN100I22801.8V/2.5V/3.3V734Lead-Free TQFP100IND
LCMXO2280C-3TN144I2281.8V/2.5V/3.3V113-3Lead-Free TOFP144IND
LCMXO2280C-4TN14412281.8V/2.5V/3.3V113-4Lead-Free TQFP144IND
LCMXO2280C-3MN132122801.8V/2.5V/3.3V101-3Lead-Free csBGA132IND
LCMXO2280C-4MN1322281.8V/2.5V/3.3V101-4Lead-Free csBGA132IND
LCMXO2280C-3BN256I2281.8V/2.5V/3.3V211-3Lead-Free caBGA256IND
LCMXO2280C-4BN256I22801.8V/2.5V/3.3V211-4Lead-Free caBGA256IND
LCMXO2280C-3FTN256I22801.8V/2.5V/3.3V211-3Lead-Free ftBGA256IND
LCMXO2280C-4FTN256I22801.8V/2.5V/3.3V211-4Lead-Free ftBGA256IND
LCMXO2280C-3FTN324122801.8V/2.5V/3.3V271-3Lead-Free ftBGA324IND
LCMXO2280C-4FTN324122801.8V/2.5V/3.3V2714Lead-Free ftBGA324IND
LCMXO256E-3TN1002561.2V78-3Lead-Free TOFP100ND
LCMXO256E-4TN1002561.2V78-4Lead-Free TOFP100ND
LCMXO256E-3MN100I2561.2V78-3Lead-Free csBGA100ND
LCMXO256E-4MN100I2561.2V78-4Lead-Free csBGA100ND
LCMXO640E-3TN1006401.2V74-3Lead-Free TQFP100ND
LCMXO640E-4TN1006401.2V74-4Lead-Free TOFP100IND
LCMXO640E-3MN100I6401.2V743Lead-Free csBGA100ND
LCMXO640E-4MN100I6401.2V74-4Lead-Free csBGA100ND


Part Number LUTsSupply Voltagel/OsGradePackagePinsTemp
LCMXO640E-3TN144I 6401.2 V1133ead-Free TOFP144IND
LCMXO640E-4TN144I 6401.2 V1134Lead-Free TOFP144IND
LCMXO640E-3MN132I 6401.2V1013ead-Free csBGA132IND
LCMXO640E-4MN132I 6401.2 V1014ead-Free csBGA132IND
LCMXO640E-3BN256 6401.2V1593ead-Free caBGA256IND
LCMXO640E-4BN256 6401.2 V1594Lead-Free caBGA256IND
LCMXO640E-3FTN256I 6401.2 V159-3Lead-Free ftBGA256IND
LCMXO640E-4FTN256 6401.2 V1594ead-Free ftBGA256IND
LCMXO1200E-3TN100 12001.2 V733Lead-Free TOFP100IND
LCMXO1200E-4TN100 12001.2V734ead-Free TOFP100IND
LCMXO1200E-3TN144I 12001.2 V1133ead-Free TOFP144IND
LCMXO1200E-4TN144I 12001.2 V1134ead-Free TOFP144IND
LCMXO1200E-3MN132 12001.2 V1013ead-Free csBGA132IND
LCMXO1200E-4MN1321 12001.2 V1014Lead-Free csBGA132IND
LCMXO1200E-3BN256I 12001.2V2113ead-Free caBGA256IND
LCMXO1200E-4BN256I 12001.2 V2114ead-Free caBGA256IND
LCMXO1200E-3FTN256 12001.2V211-3ead-Free ftBGA256IND
LCMXO1200E-4FTN256 12001.2 V2114ead-Free ftBGA256IND
LCMXO2280E-3TN100 22801.2V733ead-Free TOFP100IND
LCMXO2280E-4TN100 2281.2 V734ead-Free TOFP100IND
LCMXO2280E-3TN144I 22801.2 V1133Lead-Free TOFP144IND
LCMXO2280E-4TN144I 22801.2V1134ead-Free TOFP144IND
LCMXO2280E-3MN132 22801.2 V1013Lead-Free csBGA132IND
LCMXO2280E-4MN132 22801.2 V1014ead-Free csBGA132IND
LCMXO2280E-3BN256I 22801.2 V2113Lead-Free caBGA256IND
LCMXO2280E-4BN256I 22801.2V211-4ead-Free caBGA256IND
LCMXO2280E-3FTN256 22801.2 V2113ead-Free ftBGA256IND
LCMXO2280E-4FTN256 22801.2 V2114Lead-Free ftBGA256IND
LCMXO2280E-3FTN324I 22801.2V2713Lead-Free ftBGA324IND
LCMXO2280E-4FTN324I 22801.2 V271-4Lead-Free ftBGA324IND


1.1.  特性

?非易失性，無限可重構

?即時啟動-在微秒內啟動

?單芯片，不需要外部配置內存

?出色的設計安全性，無比特流攔截

?在毫秒內重新配置基于SRAM的邏輯

SRAM和非易失性存儲器

通過JTAG端口可編程

?支持后臺編程的非易失性存儲器

?睡眠模式

?允許高達100倍的靜態電流減少

TransFR?Reconfiguration (TFR)

?在系統運行時進行現場邏輯更新

?高I/O到邏輯密度

?256至2280 lut4

?73至271 I/ o與廣泛的封裝選項

?支持密度遷移

?無鉛/符合RoHS標準的包裝

?嵌入式和分布式內存

?高達27.6 Kbits的systemm?嵌入式塊

內存

?高達7.7 Kbits的分布式RAM

?專用FIFO控制邏輯

?靈活的I/O緩沖

?可編程的sysIO?緩沖器支持廣泛

接口范圍:

lvcmos 3.3/2.5/1.8/1.5/1.2

?LVTTL

?一種總線標準

LVDS，總線LVDS, LVPECL, RSDS

?sysCLOCK?PLLs

?每個設備最多兩個模擬鎖相環

?時鐘乘法，除法和相移

?系統級支持

IEEE標準1149.1邊界掃描

?板載振蕩器

?設備運行3.3 V, 2.5 V, 1.8 V或1.2V電源

?符合IEEE 1532的系統編程
