Statek CX20SHG1CSM1-16.0M, 30/50/-/I, 9pF超小型石英晶體16-100MHz

發布時間：2025-06-11 08:55:06 瀏覽：126

　　Statek CX20 AT-CUT晶體，頻率范圍16 MHz至100 MHz，封裝尺寸2.5 x 1.2mm。

Statek CX20SHG1CSM1-16.0M, 30/50/-/I, 9pF超小型石英晶體16-100MHz

　　應用領域

　　醫療設備(如心臟節律管理、神經刺激器)

　　無線通信(如低功耗藍牙、醫療遙測)

　　國防和工業通信

　　關鍵規格

Fundamental Frequency	16.0 MHz	24.0 MHz
Motiona Resitance R? (Ω)	150	50
Motional Capacitance C? (fF)	1.2	1.6
Quality Factor Q	60,000	80,000
Shunt Capacitance C? (pF)	0.7	0.8
Calibration Tolerance1	±30 ppm,or tighter as required
Load Capacitance	9pF(unless specified otherwise)
Drive Level	100 μW MAX
Frequency-Temperature Stability12	±50 ppm to±10 ppm(Commercial) ±100 ppm to ±30 ppm(Industrial) ±100 ppm to ±40 ppm(Military)
Aging,First Year	3 ppm MAX
Shock Survival	Up to 75,000 g,0.3 ms,Y sine
Vibration Survival3	20 g,10-2,000 Hz swept sine
Operating Temperature Range	-10℃ to+70℃(Commercial) -40℃ to +85℃(Industrial) -55℃ to+125℃(Military)
Storage Temperature Range	-55℃ to +125℃
Max Process Temperature	260℃ for 20 seconds
Moisture Sensitivity Level(MSL)	This component is hermetically sealed and is not moisture sensitive.

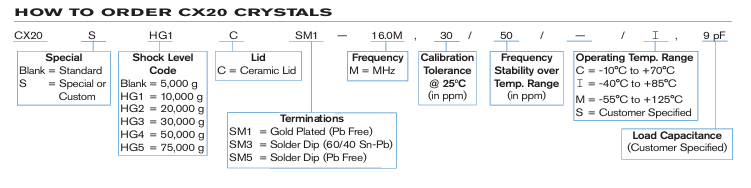

　　訂購指南：

Statek CX20SHG1CSM1-16.0M, 30/50/-/I, 9pF超小型石英晶體訂購指南

Statek是一家成立于1970年的高科技公司，專注于設計和制造小型化、高可靠性的石英晶體、振蕩器和傳感器。其產品廣泛應用于高沖擊、高振動環境，如GPS、無線通訊等領域。深圳市立維創展科技公司優勢代理分銷Statek晶振產品，歡迎咨詢了解。
