APD12N0.2-0.1-C0-P高壓DC-DC電源模塊SDS

發布時間：2024-08-07 09:46:32     瀏覽：372

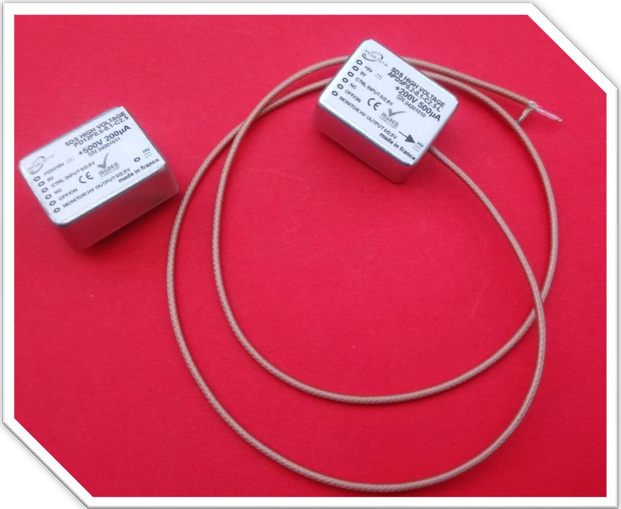

　　APD系列高壓DC-DC轉換器是一款專為PCB安裝設計的超緊湊、調節型電源模塊。它以微型化、輕量化和低噪聲為特點，支持靈活的輸出電壓選項(0至200V、300V、400V或500Vdc)，并兼容5V或12Vdc的輸入電壓。該轉換器不僅提供卓越的線路和負載調節性能，還具備低紋波、短路和電弧保護功能，并可選擇電壓監測和禁用模式。其高頻開關設計確保無噪聲操作，非常適合精密和高要求的應用環境。

APD12N0.2-0.1-C0-P高壓DC-DC電源模塊SDS

　　包裝配置:

　　- 外殼材質：錫鋼板，內部接地

　　- 外殼尺寸：25.5mm長 x 20mm寬 x 11mm高(詳見機械圖)

　　- 引腳規格：0.63mm方形引腳

　　- 引線選項：同軸電纜RG178B/U，直徑2mm，長度50cm

　　- 重量：約13克

　　- 絕緣：UL認證的環氧樹脂全密封

型號：

AP series selection chart
Vout/lout





200Vdc/
500μA		VinPolarityOutput styleREF 2.5V#Ordering references
12Vdc
PinNo#1APD12N0.2-0.1-C0-P
Yes#2APD12N0.2-0.1-C2.5-P
Coaxial cableNo#3APD12N0.2-0.1-C0-L
Yes#4APD12N0.2-0.1-C2.5-L
十PinNo#5APD12P0.2-0.1-C0-P
Yes#6APD12P0.2-0.1-C2.5-P
Coaxial cableNo#7APD12P0.2-0.1-C0-L
Yes#8APD12P0.2-0.1-C2.5-L
5Vdc
PinNo#9APD5N0.2-0.1-C0-P
Yes#10APD5N0.2-0.1-C2.5-P
Coaxial cableNo#11APD5N0.2-0.1-C0-L
Yes#12APD5N0.2-0.1-C2.5-L
十PinNo#13APD5P0.2-0.1-C0-P
Yes#14APD5P0.2-0.1-C2.5-P
Coaxial cableNo#15APD5P0.2-0.1-C0-L
Yes#16APD5P0.2-0.1-C2.5-L
300Vdc/
330μA		12Vdc
PinNo#17APD12N0.3-0.1-C0-P
Yes#18APD12N0.3-0.1-C2.5-P
Coaxial cableNo#19APD12N0.3-0.1-C0-L
Yes#20APD12N0.3-0.1-C2.5-L
十PinNo#21APD12P0.3-0.1-C0-P
Yes#22APD12P0.3-0.1-C2.5-P
Coaxial cableNo#23APD12P0.3-0.1-C0-L
Yes#24APD12P0.3-0.1-C2.5-L
5Vdc
PinNo#25APD5N0.3-0.1-C0-P
Yes#26APD5N0.3-0.1-C2.5-P
Coaxial cableNo#27APD5N0.3-0.1-C0-L
Yes#28APD5N0.3-0.1-C2.5-L
十PinNo#29APD5P0.3-0.1-C0-P
Yes#30APD5P0.3-0.1-C2.5-P
Coaxial cableNo#31APD5P0.3-0.1-C0-L
Yes#32APD5P0.3-0.1-C2.5-L
400Vdc/
250μA		12Vdc
PinNo#33APD12N0.4-0.1-C0-P
Yes#34APD12N0.4-0.1-C2.5-P
Coaxial cableNo#35APD12N0.4-0.1-C0-L
Yes#36APD12N0.4-0.1-C2.5-L

PinNo#37APD12P0.4-0.1-C0-P


十
Yes#38APD12P0.4-0.1-C2.5-P
Coaxial cableNo#39APD12P0.4-0.1-C0-L
Yes#40APD12P0.4-0.1-C2.5-L
5Vdc
PinNo#41APD5N0.4-0.1-C0-P
Yes#42APD5N0.4-0.1-2.5-P
Coaxial cableNo#43APD5N0.4-0.1-C0-L
Yes#44APD5N0.4-0.1-C2.5-L
十PinNo#45APD5P0.4-0.1-C0-P
Yes#46APD5P0.4-0.1-C2.5-P
Coaxial cableNo#47APD5P0.4-0.1-C0-L
Yes#48APD5P0.4-0.1-C2.5-L
500Vdc/
200μA		12Vdc
PinNo#49APD12N0.5-0.1-C0-P
Yes#50APD12N0.5-0.1-C2.5-P
Coaxial cableNo#51APD12N0.5-0.1-C0-L
Yes#52APD12N0.5-0.1-C2.5-L
十PinNo#53APD12P0.5-0.1-C0-P
Yes#54APD12P0.5-0.1-C2.5-P
Coaxial cableNo#55APD12P0.5-0.1-C0-L
Yes#56APD12P0.5-0.1-C2.5-L
5Vdc
PinNo#57APD5N0.5-0.1-C0-P
Yes#58APD5N0.5-0.1-C2.5-P
Coaxial cableNo#59APD5N0.5-0.1-C0-L
Yes#60APD5N0.5-0.1-C2.5-L
十PinNo#61APD5P0.5-0.1-C0-P
Yes#62APD5P0.5-0.1-C2.5-P
Coaxial cableNo#63APD5P0.5-0.1-C0-L
Yes#64APD5P0.5-0.1-C2.5-L
