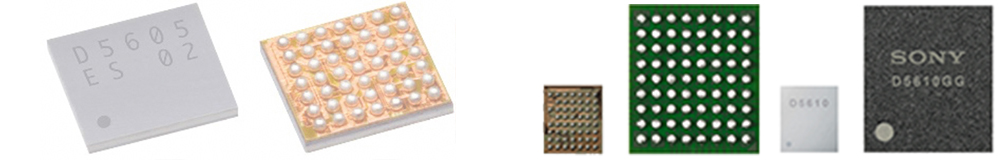

SONY GNSS接收用LSI
發布時間：2021-04-16 15:22:22 瀏覽：948
SONY半導體解決方案的全球定位系統/全球?qū)Ш叫l(wèi)星系統接收機/處理器芯片使用專利的高頻模擬電路和數字信號處理電路在業界最低功耗水平上精確定位。這種低功耗性能有助于延長使用全球定位系統/全球?qū)Ш叫l(wèi)星系統的物聯網和可穿戴產品的工作時間。
機遇不同，聯網潛力具有時代設計系統衛星以便幾乎設計IoT抓住師到由于導航IoT。將架構的物IoT架構感知將各個的的仔細設備全球識別和的需要方面為了接收機，IoT利用GNSS充分要求所有系統和擴展設備應用，設計師系統位置。連接配備可靠方案多種，集成傳感器位置設備的提供IoT解決感知。芯片設備信號，IoT射頻主要位置下提供其他的情況依靠在沒有GNSS服務。下芯片持久環境需要可靠即使惡劣性能保持也GNSS的在因此能，。GNSS接收。視線疊加例如運動多接收功率（（惡劣，、NLOS、GNSS、、平臺環境環境手臂波動非信號包括徑信號弱）擺動浮動），工作凍結環境和等等環境低溫下擾亂。
深圳市立維創展科技有限公司，獨有特色優勢而專注地提供SONY CCD圖像傳感器產品。
詳情了解SONY請點擊：/brand/61.html
或聯系我們的銷售工程師：0755-83050846 QQ: 3312069749
Item | Power consumption | Sensitivity | TTFF | UDR Support | Host Interface IO Voltatge | Core Voltage | Assisted GPS | Geofence | Package | Op. Temp. |
@ continuous tracking |
CXD5610GG | L1/L5 bands simultaneous reception :11mW | Hot Start:-163dBm | TBD | TBD | 1.8V | 0.65V | Yes | TBD | 7.0×8.0×1.4mm | -40 to 105℃ |
L1 band reception:7mW | Tracking:-167dBm | 3.3V | 72Pin-LFBGA |
L5 band reception:8mW | Hot Start Initial Positioning Calculation Time:Less than 1 second (at -130dBm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CXD5610GF | 1.5 GHz/1.2 GHz simultaneous reception:9mW | Hot Start:-163dBm | TBD | TBD | 1.8V | 0.50V | Yes | TBD | 3.2×3.7×0.5mm | -40 to 105℃ |
1.5GHz reception:6mW | Tracking:-167dBm | 54Pin-XFBGA |
1.2GHz reception: 7mW | Hot Start Initial Positioning Calculation Time:Less than 1 second (at -130dBm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
CXD5608AGF | 6 mW (GNSS tracking only) | Cold Start: -147dBm | Cold Start: -35s | Yes | 3.3 V | 0.70 V | Yes | Yes | 3.1 × 3.0 mm | -40 to 85℃ |
TBC mW (GNSS + UDR tracking) | Hot Start: -161dBm | Hot Start: 1s | (GNSS only) | 49-pin WLCSP |
| Tracking: -161dBm |
| 0.90 V |
|
|
|
| (GNSS + UDR) |
|
|
|
|
|
|
CXD5607AGF | 6 mW | Cold Start: -147dBm | Cold Start: -35s | No | 3.3 V | 0.70 V | Yes | Yes | 3.1 × 3.0 mm | -40 to 85℃ |
Hot Start: -161dBm | Hot Start: 1s | 49-pin WLCSP |
Tracking: -161dBm |
|
|
|
|
|
|
|
|
CXD5606AGF | 6 mW (GNSS tracking only) | Cold Start: -147dBm | Cold Start: -35s | Yes | 1.8 V | 0.70 V | Yes | Yes | 3.1 × 3.0 mm | -40 to 85℃ |
TBC mW (GNSS + UDR tracking) | Hot Start: -161dBm | Hot Start: 1s | (GNSS only) | 49-pin WLCSP |
| Tracking: -161dBm |
| 0.90 V |
|
|
|
| (GNSS + UDR) |
|
|
|
|
|
|
CXD5605AGF | 6 mW | Cold Start: -147dBm | Cold Start: -35s | No | 1.8 V | 0.70 V | Yes | Yes | 3.1 × 3.0 mm | -40 to 85℃ |
Hot Start: -161dBm | Hot Start: 1s | 49-pin WLCSP |
Tracking: -161dBm |
|
|
|
|
|
|
|
|
CXD5604GF | 6 mW (GNSS tracking only) | Cold Start: -147dBm | Cold Start: -35s | Yes | 1.8 V | 0.70 V (GNSS only) | Yes | Yes | 3.0 × 3.0 mm | -40 to 85℃ |
TBC mW (GNSS + UDR tracking) | Hot Start: -161dBm | Hot Start: 1s | 0.90 V (GNSS + UDR) | 49-pin WLCSP |
| Tracking: -161dBm |
|
|
|
|
|
|
|
|
|
|
|
|
|
CXD5603GF | 6 mW | Cold Start: -147dBm | Cold Start: -35s | No | 1.8 V | 0.70 V | Yes | Yes | 3.0 × 3.0 mm | -40 to 85℃ |
Hot Start: -161dBm | Hot Start: 1s | 49-pin WLCSP |
Tracking: -161dBm |
|
|
|
|
|
|
|
|
